The Milan XP MDi 3-15x50 Mil Dot riflescope meets the highest expectations of users going on the hunt or for shooting sports. This riflescope is a real all-rounder, but also delivers the best performance for:
APPLICATIONS
• Stand hunting
• Driven hunting
• Still hunting
• Paintball
• Softair
• Long Range Shooting
The riflescopes of the Milan XP series are recoil-proof and tested up to .300 Win. Mag. /with and without a silencer.
With a suitable mount (optional), the Milan XP MDi 3-15x50 Mil Dot fits for
WEAPONS
• Combination gun
• Hunting rifle
• Repeater
• Sports rifle
• Rifle
• Air rifle
• Small bore rifle
• Softair rifle
• Paintball markers
Well-selected components are used for the production of the riflescopes. They ensure an outstanding image reproduction with rich contrasts, even at dawn or low visibility. The robust and functional technic is packed in an exclusive, modern design.

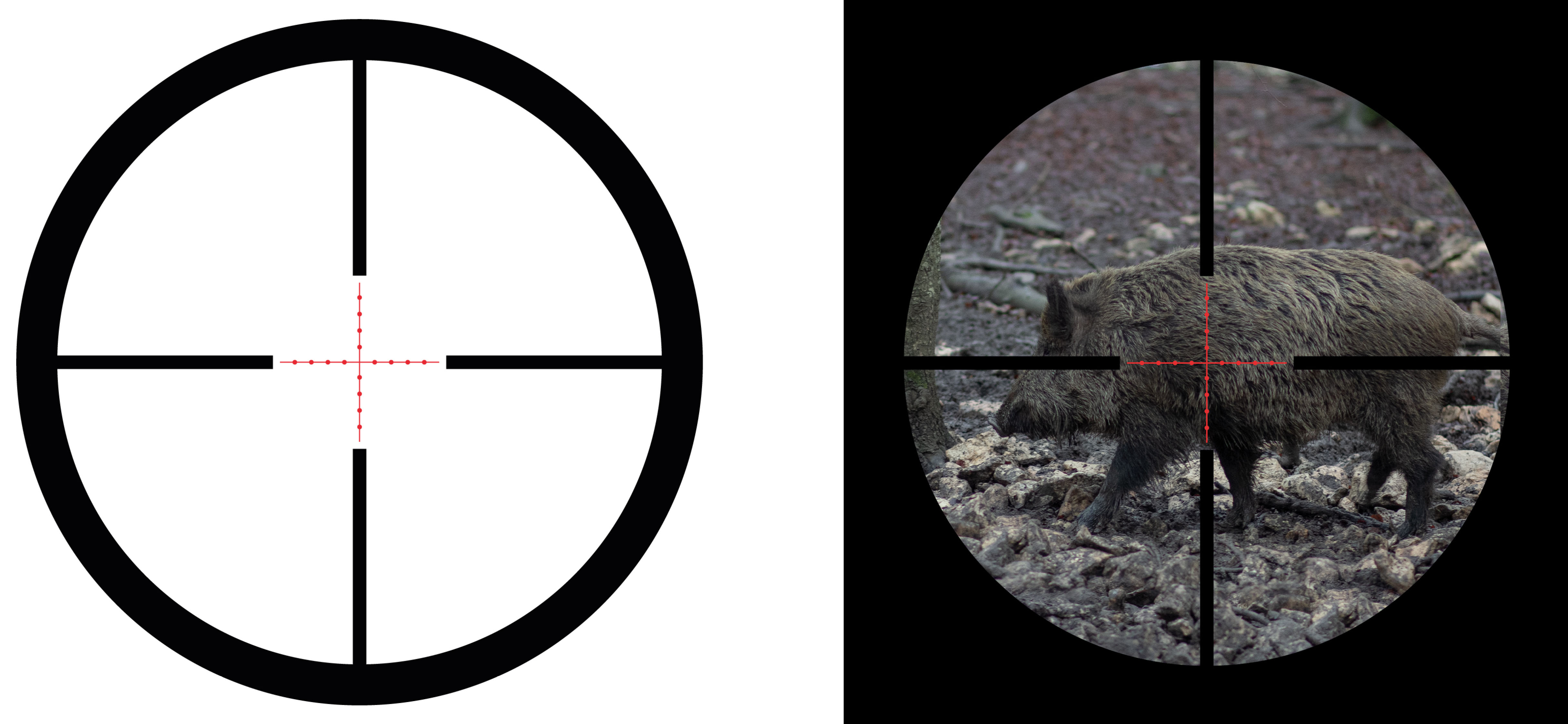

RETICLE
The Milan XP MDi 3-15x50 is equipped with the reticle Mil Dot (military reticle) in the second image focus plane. Thus, the size of the reticle always remains constant, no matter which magnification you have selected.
ILLUMINATION
Selectable, electronic red dot for more precise target recognition in the dawn. In 7 steps adjustable, auto power off after 2h.
MORE FEATURES
• Dioptre adjustment +/- 2 dptrs.
• Fogging-free due to Nitrogen filling
• Waterproof according to protection class IPX 7 (1m/30min)
• Operation with 1x CR-2032 battery (included)
|
Exit pupil Ø max. approx.
|
3,3 mm
|
|
Exit pupil Ø min. approx.
|
16,6 mm
|
|
Twilight performance max.
|
27,39
|
|
Twilight performance min.
|
12,25
|
|
Dioptre adjustment
|
Yes
|
|
Housing
|
Aluminum
|
|
Field of view at 100 m max. approx.
|
2,8 m
|
|
Field of view at 100 m min. approx.
|
12,8 m
|
|
Power supply
|
CR-2032
|
|
Power supply incl.
|
Yes
|
|
Magnification max.
|
15 x
|
|
Magnification min.
|
3 x
|
|
Diopter range
|
-2 / +2
|
|
Gas filling
|
Nitrogen
|
|
Length approx. [cm]
|
36.3 cm
|
|
Lens coating
|
Fully Multi Coated (FMC)
|
|
Objective lens diameter
|
50 mm
|
|
Reticle position
|
2nd image focus plane
|
|
Reticle adjustment
|
1 Click = 1/4 MOA
|
|
Reticle adjustment in mm
|
1 Click = 7,3 mm at 100 m
|
|
Max. elevation/windage adjustment range
|
60 MOA
|
|
Reticle illumination
|
Red Cross
|
|
Brightness levels red dot
|
1-7
|
|
Automatic switch-off
|
Yes (after 2 hours)
|
|
Objective lens diameter
|
50 mm
|
|
Parallax compensation
|
10 - ∞ m
|
|
Tube diameter approx.
|
30 mm
|
|
Fits for
|
Ring mount 30mm
|
|
Weight approx.
|
704 g
|
|
Protection class
|
IPX7
|
|
Manufacturer's warranty
|
5 Years
|
|
Scope of delivery
|
1x Riflescope, each 1x lens and eyepiece caps, 1x microfibre cloth
|
